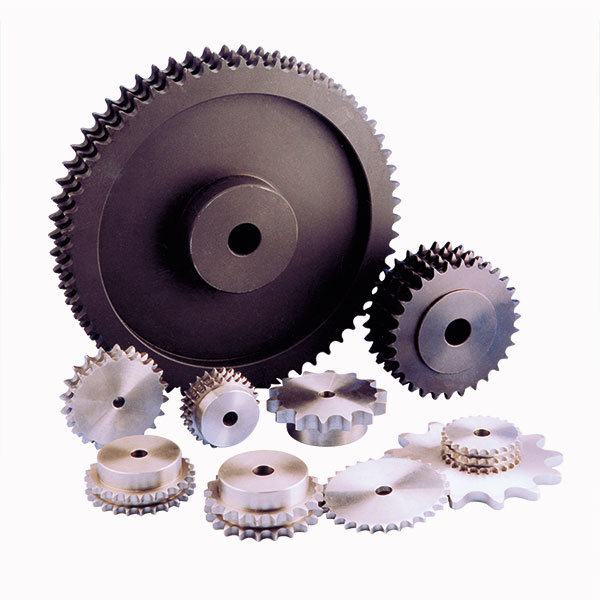

Product Details
參數介紹：
A-片式鏈輪，B-臺式鏈輪；S-Single單排，D-Double雙排，T-Triple三排，也可以用數字表示，例如“80-1、80-2、
80-3”中的1、2、3分別代表單排、雙排和三排；歐 標用毫米（Metric，mm），美標用英寸（Inches，”）。
編號示例：
S-D-T,8-125，表示：單排、雙排、三排均可生產，齒數范圍從8至125；
60A10-60A90，表示：鏈號為60，片式鏈輪、單排、齒數從10至90；
S60B08-S60B90，表示：鏈號為60，臺式鏈輪、單排、齒數從08至90；
D40B11-D40B112，表示：鏈號為40，臺式鏈輪、雙排、齒數從11至112；
T60B11-T60C95，表示：鏈號為60，臺式鏈輪、T為三排、C為雙臺式、齒數從11至95。
產品范圍：
系列標準 | 產品形式 | 尺寸范圍（齒數或孔徑等） |
美標 | 25-1 For 1/4"Pitch | 25A18-25A72,S25B09-S25B72 |
35-1 For 3/8"Pitch | 35A15-35A112,S35B08-S35B112 |
35-2 For 3/8"Pitch | D35B12-D35B102 |
35-3 For 3/8"Pitch | T35B13-T35B102 |
41-1 For 1/2"Pitch | 41A15-41A112,S41B6-S41B112 |
40-1 For 1/2"Pitch | 40A12-40A112,S40B08-S40B112 |
40-2 For 1/2"Pitch | D40B11-D40B112 |
40-3 For 1/2"Pitch | T40B11-T40B102 |
50-1 For 5/8"Pitch | 50A12-50A112,S50B08-S50B112 |
50-2 For 5/8"Pitch | D50B11-D50B72 |
50-3 For 5/8"Pitch | T50B11-T50B102 |
60-1 For 3/4"Pitch | 60A10-60A90,S60B08-S60B90 |
60-2 For 3/4"Pitch | D60B11-D60C95 |
60-3 For 3/4"Pitch | T60B11-T60C95 |
80-1 For 1/2"Pitch | 80A09-80A112,S80B08-S80C112 |
80-2 For 1"Pitch | D80B10-D80C95 |
80-3 For 1"Pitch | T80B11-T80C96 |
100-1 For 1 1/4"Pitch | 100A07-100A96,S100B08-S100C96 |
100-2 For 3/4"Pitch | D100B09-D100C80 |
100-3 For 1 1/4"Pitch | T100B11-T100C80 |
120-1 For 1 1/2"Pitch | 120A08-120A90,S120B09-S12C80 |
120-2 For 1 1/2"Pitch | D120B11-D12C60 |
120-3 For 1 1/2"Pitch | T120B11-T120C54 |
140-1 For 1 3/4"Pitch | 140A11-140A80,S140B11-S140C80 |
140-2 For 1 3/4"Pitch | D140B13-D140C60 |
140-3 For 1 3/4"Pitch | T140B11-T140C70 |
160-1 For 2"Pitch | 160A08-160A80,S160B08-S160C80 |
160-2 For 2"Pitch | D160B13-D160C60 |
160-3 For 2"Pitch | T160B11-T160C54 |
180-1 For 2 1/4"Pitch | 180A11-180A60,S180B11-S180C60 |
200-1 For 2 1/2"Pitch | 200A10-200A60,S200B10-S200C60 |
200-2 For 2 1/2"Pitch | D200B11-D200C60 |
200-3 For 2 1/2"Pitch | T200B11-T200C45 |
240-1 For 3"Pitch | 240A10-240A60,S240B10-S240C60 |
240-2 For 3"Pitch | D240B12-D240C60 |
歐標 | 03A,Pitch5mm | S,8-125 |
03B,Pitch5mm | S,8-40 |
04A,Pitch6mm | S,8-125 |
04B,Pitch6mm | S,8-57 |
05A,Pitch8mm | S-D,8-125 |
05B,Pitch8mm | S-D,8-57 |
06A,Pitch9.525mm | S-D-T,8-125 |
06B,Pitch9.525mm | S-D-T,8-125 |
081A,Pitch12.70mm | S,8-125 |
081B,Pitch12.70mm | S,8-40 |
083/084A,Pitch12.70mm | S,8-125 |
083/084B,Pitch12.70mm | S,8-40 |
08A,Pitch12.70mm | S-D-T,8-125 |
08B,Pitch12.70mm | S-D-T,8-125 |
10A,Pitch15.875mm | S-D-T,8-125 |
10B,Pitch15.875mm | S-D-T,8-125 |
12A,Pitch19.05mm | S-D-T,8-125 |
12B,Pitch19.05mm | S-D-T,8-95 |
16A,Pitch25.40mm | S-D-T,8-125 |
16B,Pitch25.40mm | S-D-T,8-95 |
20A,Pitch31.75mm | S-D-T,8-114 |
20B,Pitch31.75mm | S-D-T,8-95 |
24A,Pitch38.10mm | S-D-T,8-95 |
24B,Pitch38.10mm | S-D-T,8-95 |
28A,Pitch44.45mm | S-D-T,8-76 |
28B,Pitch44.45mm | S-D-T,8-76 |
32A,Pitch50.80mm | S-D-T,8-76 |
32B,Pitch50.80mm | S-D-T,8-76 |
美標樣本：
SB工藝孔鏈輪-美標.pdf
歐標樣本：SB工藝孔鏈輪-歐標.pdf
